二手E5071C KEYSIGHT(AGILENT)網絡分析儀銷售
二手E5071C,二手網絡分析儀，二手AGILENT網分，二手進口網分，二手KEYSIGHT E5071C
一.產品描述
E5071C ENA 矢量網絡分析儀
最大頻率20 GHz
動態范圍123 dB
輸出功率10 dBm
軌跡噪聲0.003 dBrms
內置端口數量2 或 4 端口
諧波-25 dBc
本底噪聲-131 dBm
掃描速度最高可達 201 個點5 ms
應用
S 參數
多端口
平衡測量
元器件
電纜
混頻器/變頻器
放大器
諧振器
Additional features
E5071C-010時域分析
E5071C-790測量向導助手（MWA）軟件
E5071C-008頻率偏置模式
E5071C-TDRE5071C-TDR 增強型時域分析選件
Timebase stability
E5071C-UNQStandard stability timebase
E5071C-1E5High stability timebase
Calibration documentation
E5071C-1A7Calibration + Uncertainties + Guardbanding (Not Accredited)
E5071C-A6JANSI Z540-1-1994 Calibration
Test set
E5071C-2802-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-2852-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-4804-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-4854-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-2402-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-2452-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-4404-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-2K52-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-4454-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-4K54-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-4D54-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-4654-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-4604-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-2D52-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-2652-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-2602-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
Hard disk drive options
E5071C-017Removable Data Storage
E5071C-019Standard Data Storage
Accessories
E5071C-1CMRack mount kit
E5071C-1CNFront handle kit
E5071C-1CPRack mount and front handle kit
E5071C-810Add keyboard
E5071C-820Add mouse
二.紫信提供二手E5071C KEYSIGHT(AGILENT)網絡分析儀銷售解決方案
1品質保證：只售原裝正品，嚴格售前測試， 長期備有KEYSIGHT(是德科技）、AGILENT(安捷倫）、和R&S(羅德與施瓦茨）和ADVANTEST(愛德萬)等進口品牌矢量網絡分析儀，多種型號和數量可供選擇；
2.免費送貨：長三角地區城市包括蘇州無錫昆山上海常州太倉常熟張家港吳江南京杭州鎮江泰州南通嘉興湖州合肥揚州臨安寧波溫州紹興金華衢州臺州麗水揚州徐州連云港市淮安市鹽城市宿遷市蕪湖蚌埠淮南馬鞍山淮北銅陵安慶黃阜陽宿州滁州市六安宣城池州亳州等,根據儀器的具體情況采取免費上門送貨或快遞的方式；
3.售價優惠：時刻保持銷售價格優惠于同行業競爭對手；
4.技術支持：對所出售儀器提供使用和操作的技術支持，協助客戶完成測試解決方案；
5.售后服務：保修12個月，以強大的維修能力，支持售后保修服務；
6.銷售的主要網絡分析儀型號：
?E5071C,E5071B,E5080A,E5072A,E5080B,E5070B,E5062A,E5061A,E5063A,E5061B,ZNB8,ZNB4,ZNB20,,N5221A,N5221B,N5222A,N5222B,N5 ?224A,N5224B,N5225B,N5225A,N5234B,N5234A,N5230A,N5230C,N5227B,N5222BT,N5225BT,N5232A,N5232B,N5235B,N5235A,N5231B,N5231 ?A,N5239B,N5290A,N5242A,N5242B,N5241B,N5241A,N5244B,N5244A,N5245B,N5245A,N5247A,N5247B,N5249A,N5249B,N5264A,N5264B,N52 ?91A,N5245BQ,N5245BV,N5244BM,N5245BM,N5245BP,N5247BM,R3765CH,R3765CG,R3767CH,R3767CG,P9370A,P9371A,P9372A,P9373A,P9374 ?A,P9375A,P5000A,P5001A,P5002A,P5003A,P5004A,P5005A,P5006A,P5007A,P5008A,P5020A,P5021A,P5022A,P5023A,P5024A,P5025A,P50 ?26A,P5027A,P5028A,N9951B,N9916A,N9917A,N9936B,N9915A,N9914A,N9913A,N9918A,N9925A,N9926A,N9927A,N9928A,N9935A,N9916B,N ?9917B,N9936A,N9937A,N9938A,N9923A,N9912A,N9918B,N9950A,N9951A,N9952A,N9960A,N9961A,N9962A,N9950B,N9952B,N9953B,N9960B ?,N9962B,N9963B,N9961B,N9913B,N9914B,N9915B,N9933B,N9934B,N9935B,N9937B,N9938B,8719ES,8720ES,HP8722ES,8722ES,HP8720D,8 ?720D,HP8720ES,HP8722D,8722D,8753ES,HP8753ES,8753E,HP8753E,E8356A,E5100A,E8363B,E8357A,E8358A,E8362B,E8362C,E8364C,870 ?50A,87050E,87050B,8753D,HP8753D,8753C,HP8753C,8757D,HP8712ET,8712ET,HP8712ES,8712ES,HP8714ES,8714ET,HP8714ET,8714ES,8 ?713C,8714C,HP8711A,HP8711C,MS4263B,MS2024A,R3755A,R3760,R3768,ZNA26,ZNA43,ZNA50,ZNA67,ZVA110,ZVT8,ZVT20,ZNBT8,ZNBT20, ?ZNBT26,ZNBT40,ZNB40,ZND,ZNL3,ZNL4,ZNL6,ZNL14,ZNL20,ZNH4,ZNH8,ZNH18,ZNH26,ZVL13,ZNLE3,ZNLE4,ZNLE6,ZNLE14,ZNLE18,ZVB8,Z ?VB4等等

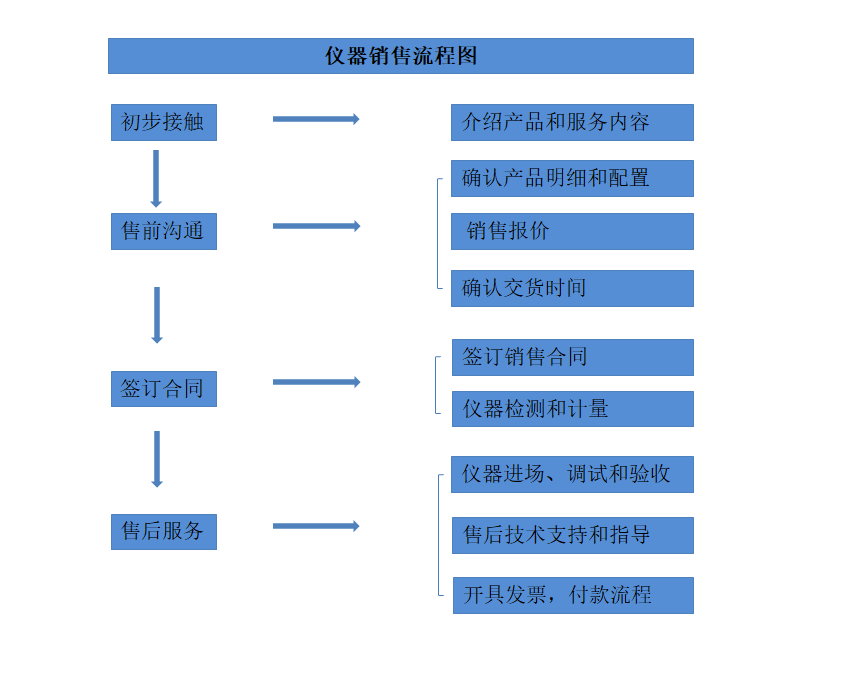

三.二手E5071C KEYSIGHT(AGILENT)網絡分析儀銷售流程
